Specification

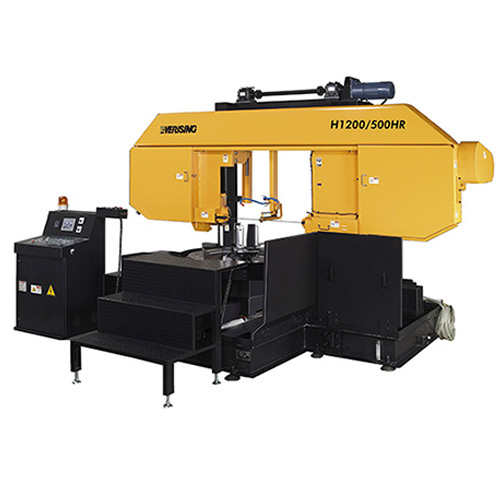

| MODEL | H1200/500R | |
|---|---|---|
| CAPACITY | OD | 1200 mm |
| ID | 500 mm | |
| HEIGHT | 500 mm | |
| MAX. WALL THICKNESS | 300 mm | |
| BLADE SIZE | 8300 x 67 x 1.6 mm | |
| BLADE SPEED | 15 to 75 m/min | |
| BLADE TENSION | Hydraulic | |
| MOTOR | BLADE | 11 kW (15 HP) |
| HYD. PUMP | 2.2 kW (3 HP) | |
| COOLANT PUMP | 0.4 kW (1/2 HP) | |
| SERVO FEED | 2 kW (3 HP) | |
| TABLE ROTATE | 1.5 kW (2 HP) | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
